A10: Final Drawing Pin Up



November 10, 2018



Due Tuesday 11/13

(Print and Pin up) Review with outside critics. Please bring midterm models.


Required Drawings with color, occlusion rendering and line work.

1/8” = 1’-0” ground plan
1/8” = 1’-0” upper level plan
1/8” = 1’-0” section 1
1/8” = 1’-0” section 2
1/8” = 1’-0” four elevations (x4) (with occlusion rendering 20% opacity. Please make sure any color/texture is vector-based fills and line work.)

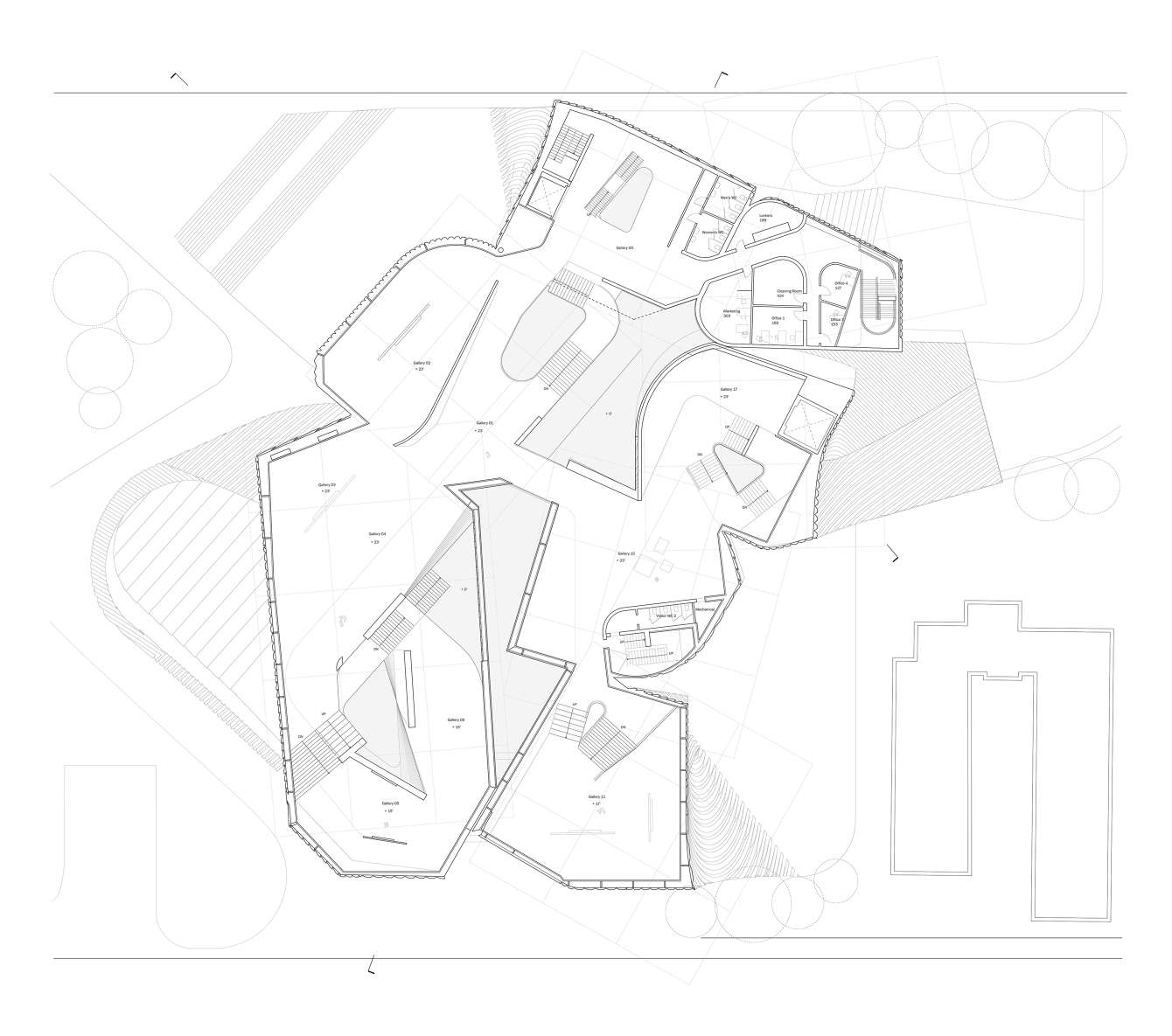

Example Drawings
